Active 2.1 speakers Dialog AP-220

Add to compare
print page
Download photos

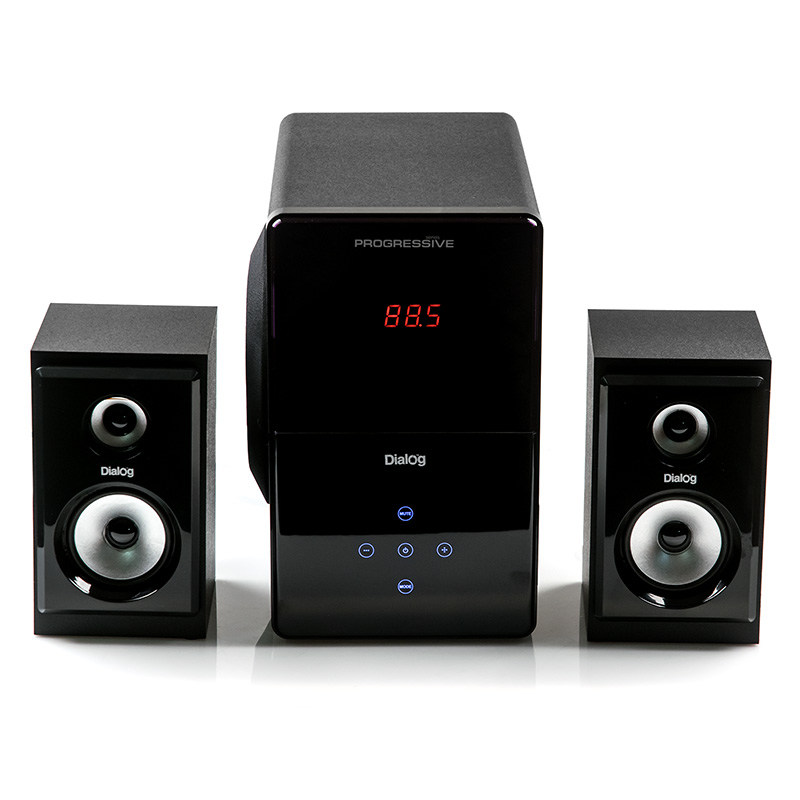

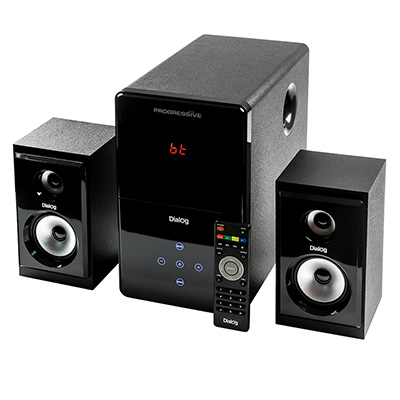

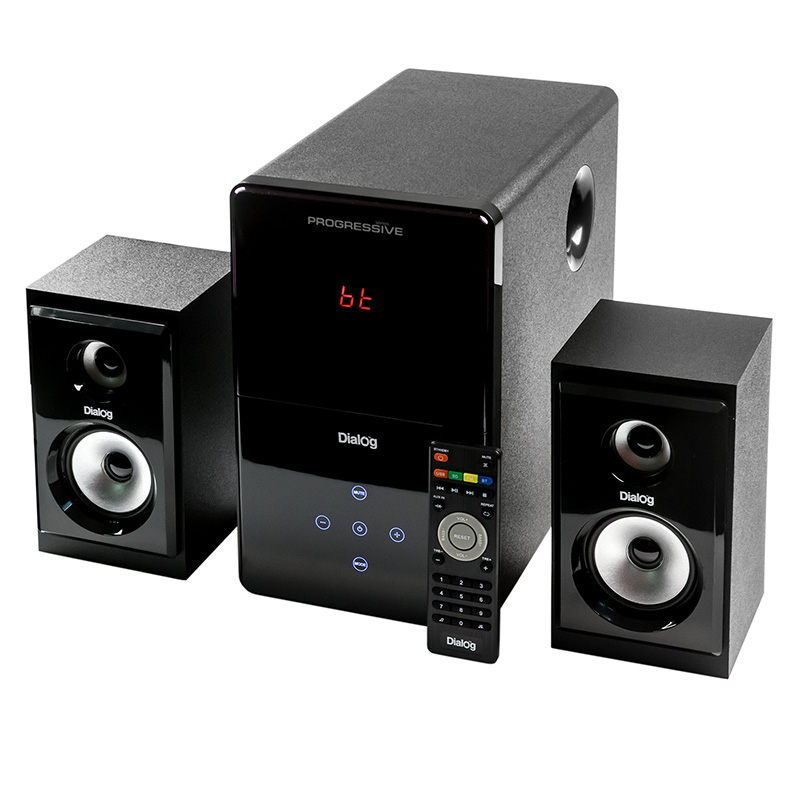

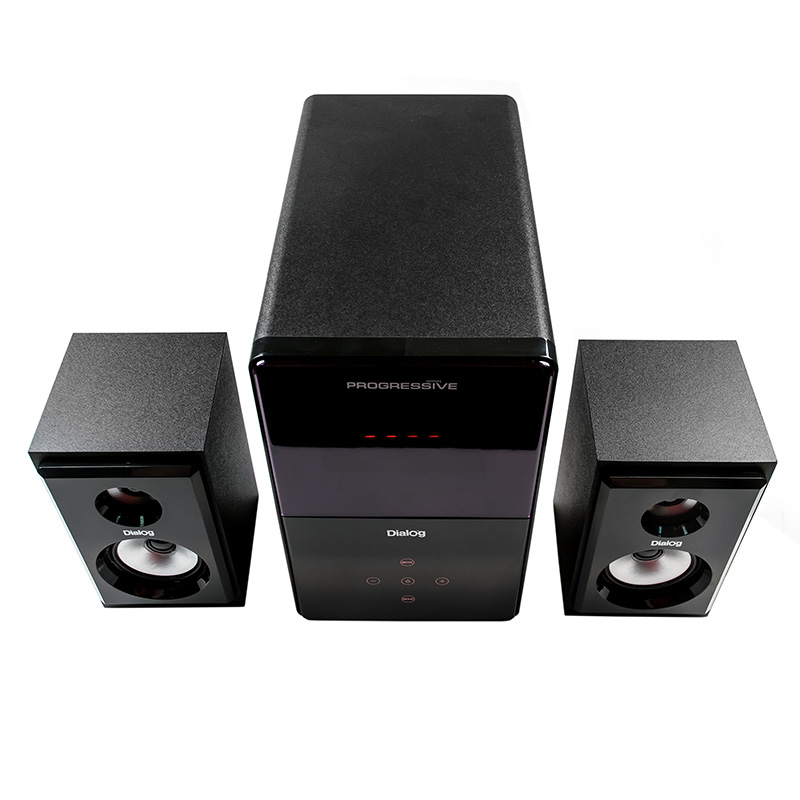

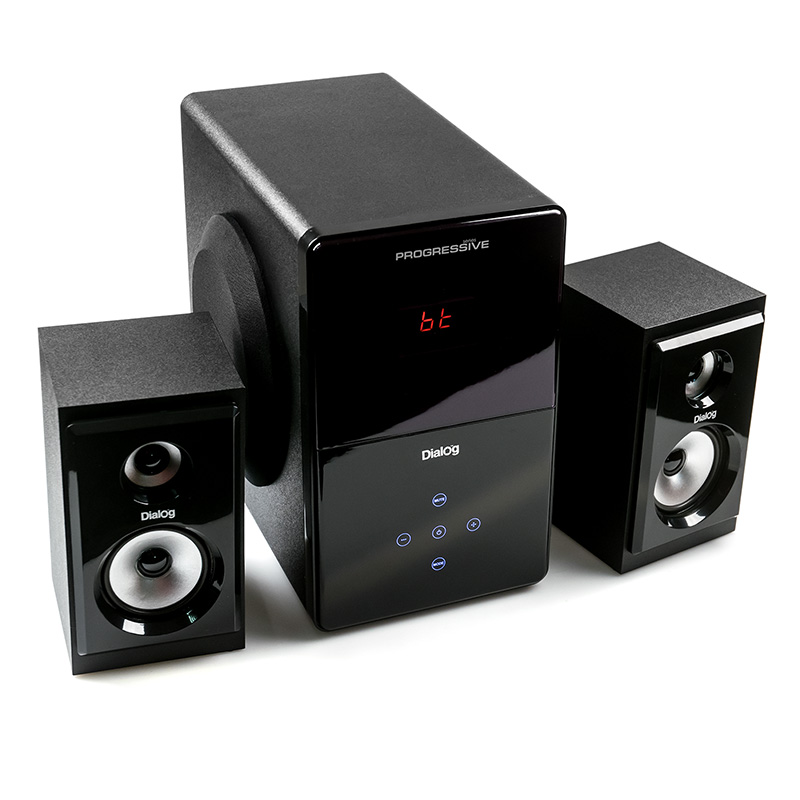

2.1 Speakers AP-220 main photo
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
AP-220 thumbnail
Product specifications
ModelAP-220
Power RMS, W60
Bluetooth supportYes, only for models, produced starting from October, 2020. Date of production - check sticker on the subwoofer rear side, format is P.D.000000000MMYY. New models with alphanumeric displays on front panel
FM radioYes, 20 stations memory
USB supportYes
SD card supportYes. SD, + miniSD & microSD (via adapter - sold separately)
AmplifierBuilt-in
ComponentsSubwoofer, 2 satellites
SNR>80
Harmonic distortionnot more than 0.3% at 1 W and a bandwidth of 1 kHz
Power supplyBuilt-in

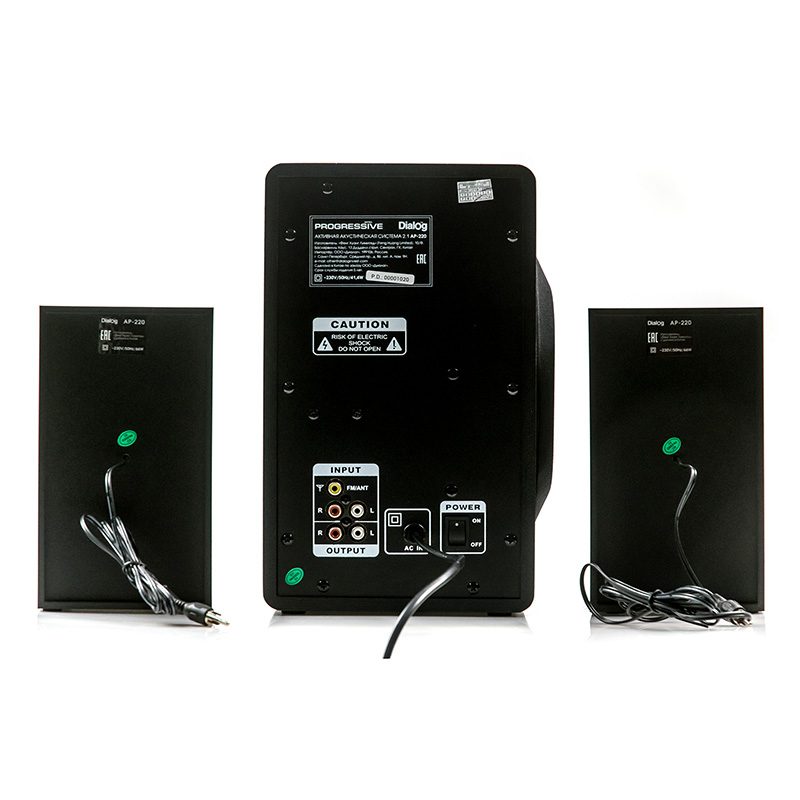

InputsStereo input (2RCA), USB port for flash drives; SD card slot

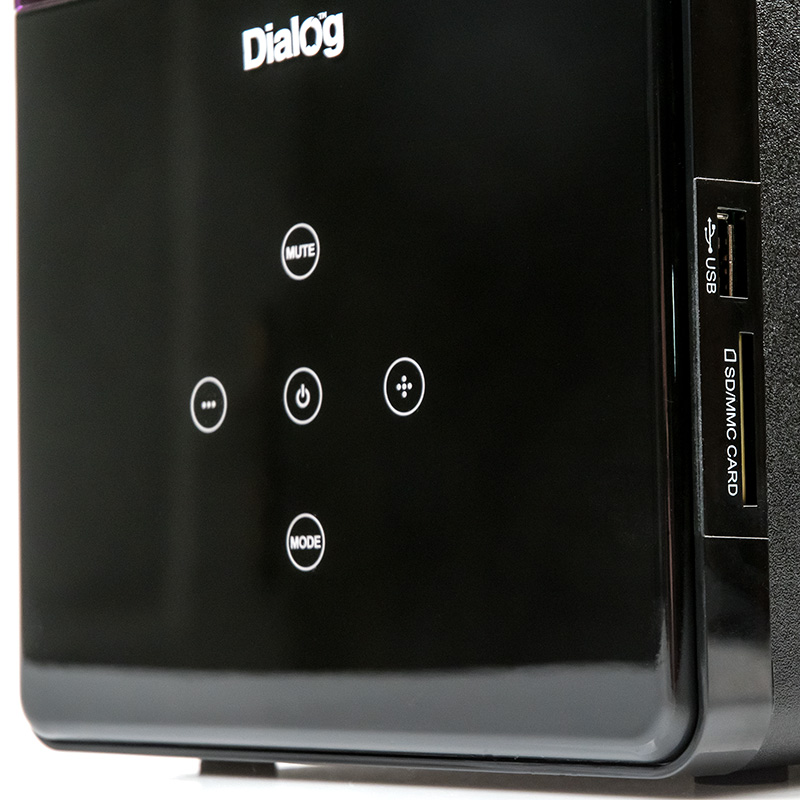

Controlssubwoofer (touch buttons): power, volume control, source switching, forward / backward (on the tracks or radio stations), mute; Remote: detailed description in the user manual

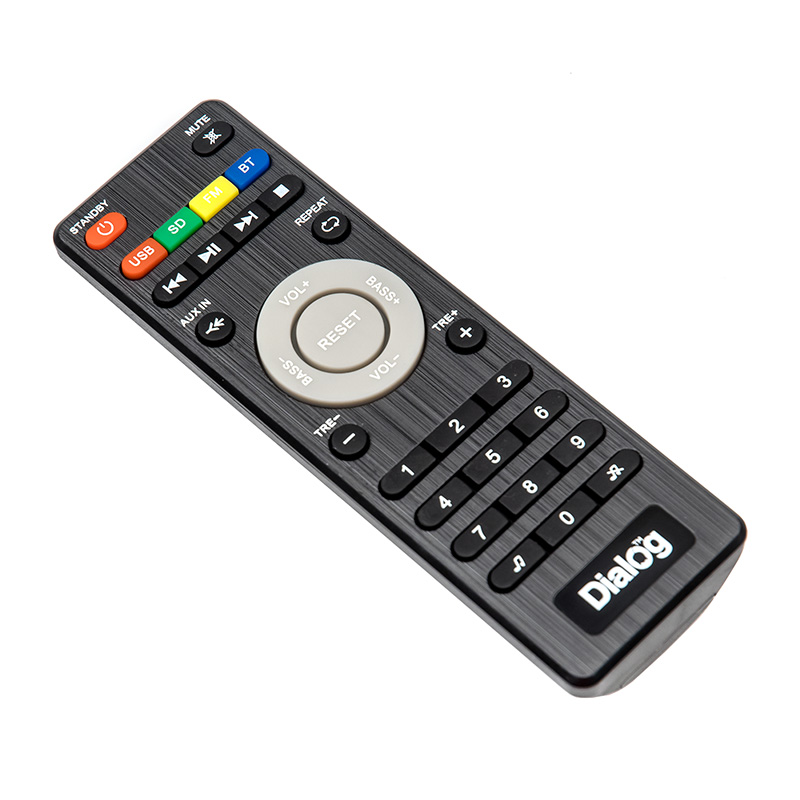

Remote controlIR remote, size 140*45*18 mm, 31 buttons, powered from 2*ААА (LR03) 1,5V batteries
Indicators4-symbol display on subwoofer, red characters, dark background
Power cable length (m)1,5
Subwoofer
Loudspeaker(s)5.25''
Power (W)30
Impedance (Ohm)4
Frequency range(Hz-Hz)from 40 Hz
Phase inverterPipe on side panel, D=45mm, L=95mm
Magnetic shieldingYes
CaseMDF, 9 mm
Grilltextile
Overall dimensions (H*L*D, mm)300*170*280
Weight (kg)3.6

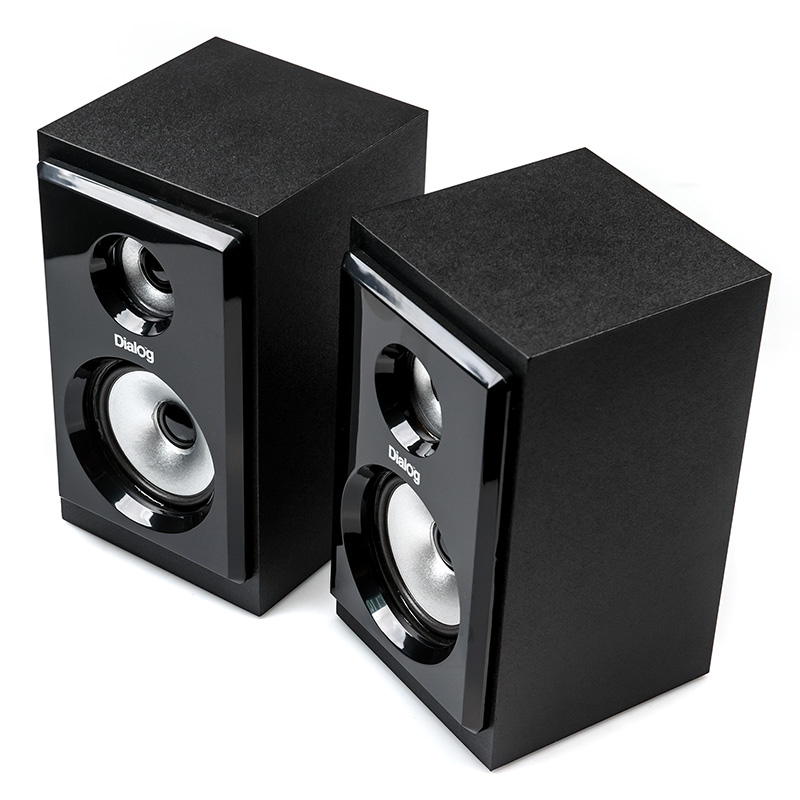

Satellites
Loudspeaker(s)3''
Power (W)15
Impedance (Ohm)4
Frequency range (Hz-kHz)up to 20 kHz
Run-out materialpaper
Magnetic shieldingYes
CaseMDF, 4.5 mm
Overall dimensions (H*L*D, mm)190*117*110
Weight (kg)0,53
Supplied partssubwoofer, two satellites, cable for connection to a signal source 2RCA-> 3.5 mm stereo jack, RCA antenna, IR remote control, 2x AAA batteries, user manual, warranty card, packing
