Outdoor Bluetooth speakers Dialog Oscar AO-220

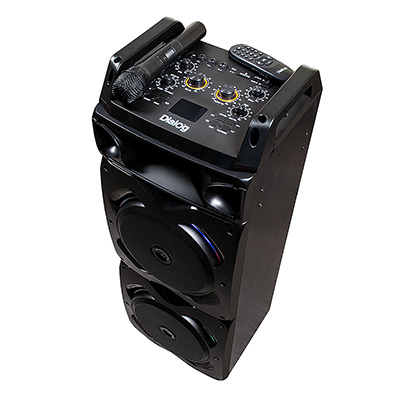

Portable Bluetooth speakers AO-220 main photo
Printer friendly page
Download photos
Add to compare
Product specifications
Model moved to archive on 07.10.2023
TypeFloorstanding portable
Power RMS, W100
Wireless interfaceYes. Bluetooth v4.2 + EDR
TWS mode supportedNo
BatteryBuilt-in, 7000 mAh *The speakers should be stored and used strictly in an upright position to avoid battery leakage!
Supported mediaYes, SD/MicroSD (TransFlash) via adapter
Yes. External flexible antenna
Supported file system type and sizeFAT16/FAT32, up to 32Gb
Supported file formatsMPEG-1 Audio Layer 3 (MP3), with 64 - 320 kbps bitrate. FLAC, WAV, WMA
Componentsoutdoor speaker system
SNR> 68
Harmonic distortion<0.3% (1W 1KHz)
Power suppplyBuilt-in battery OR power from external AC power adapter (15V, 2A) OR power from external 12V battery
InputsLine in AUX (3.5mm minijack)
KaraokeYes, 2* microphone input (6.3mm jack), volume controls and reverb (echo). Wireless microphone supported and included

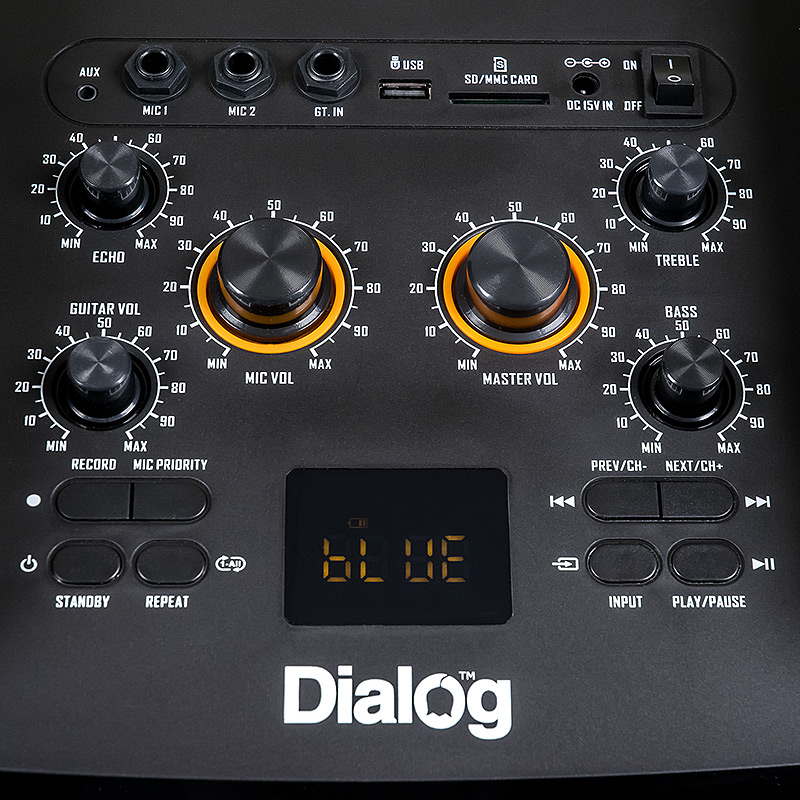

Controlson the top panel: power on / off, next recording / radio station, previous recording / radio station, play / pause, mode selection (sound source), microphone priority, start/stop microphone recording, standby, repeat; controls: volume, microphone volume, microphone echo, low frequency (Bass), high frequency (Treble), guitar volume
Remote controlYes. IR remote, 20 buttons; dimensions,mm 150*45*20, powered by 2xAAA batteries
Indicationfour-character display on the top side (glowing yellow characters, dark display)
Color musicYes, multicolor color music
Power cable length (m)110 cm. ± 5%
Loud speaker(s)2*8″ + 1″
Power (W)100
Impedance (Ohm)
Frequency range (Hz-kHz)20-19

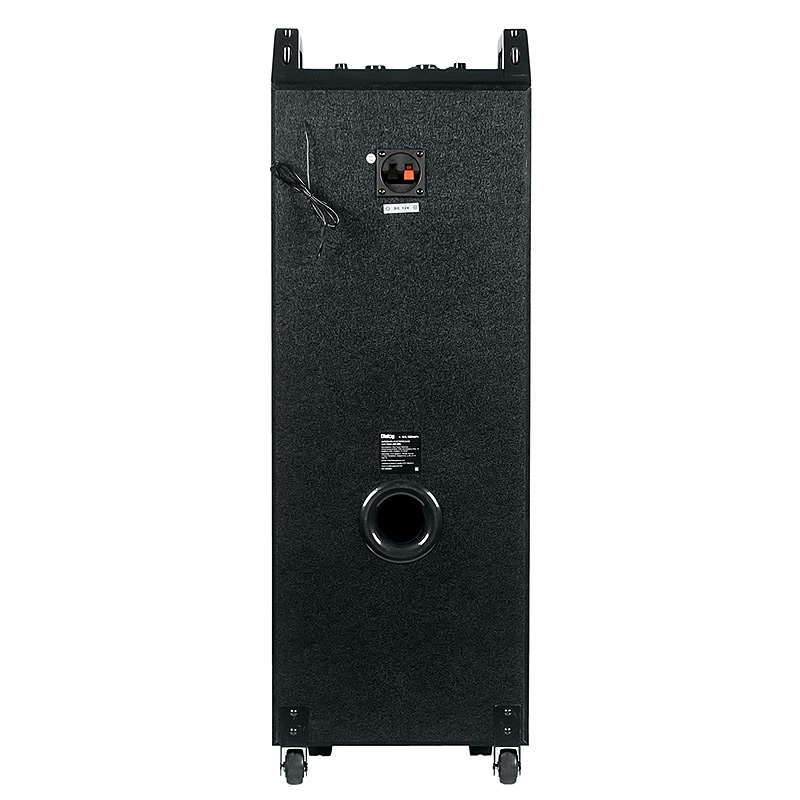

Phase inverterpipe at the rear panel, D = 55mm, L = 110mm
CaseMDF, 6 mm
GrillBlack metallic
Case dimensions (H*L*D, mm)Body: 850*300*270, legs/wheels: 45mm, carrying handles 50mm
Weight (Kg)13.80

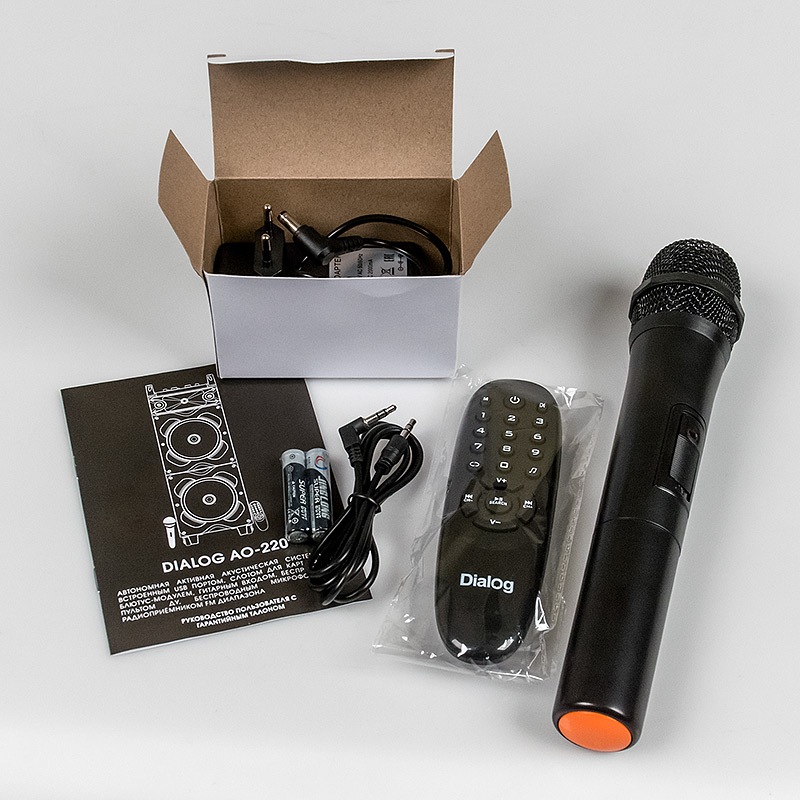

Supplied partsoutdoor speaker system - 1 pc, power supply 220V AC - 15V 2A DC - 1 pc, karaoke wireless microphone - 1 pc, IR remote control -1 pc, non-rechargeable AAA batteries for IR remote control - 2 pcs, user manual with warranty card - 1 pc, package - 1 set
