Active 2.1 speakers Dialog Progressive AP-209

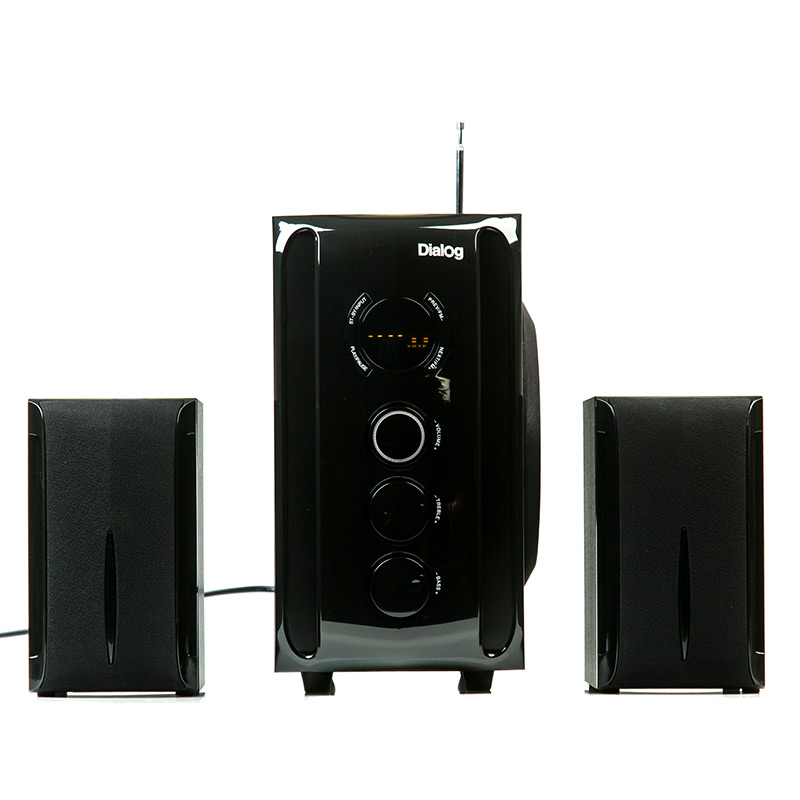

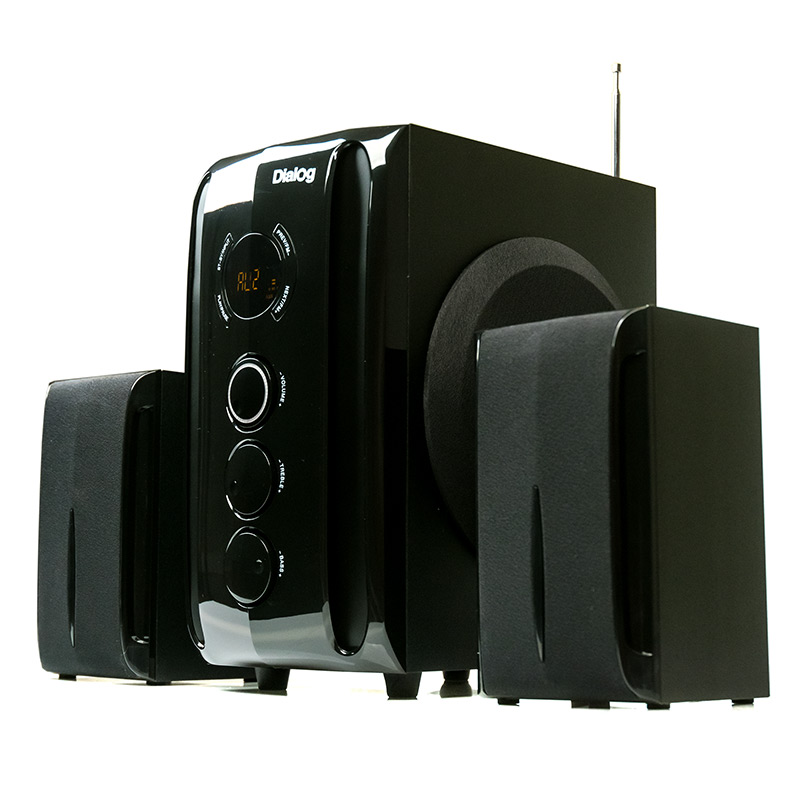

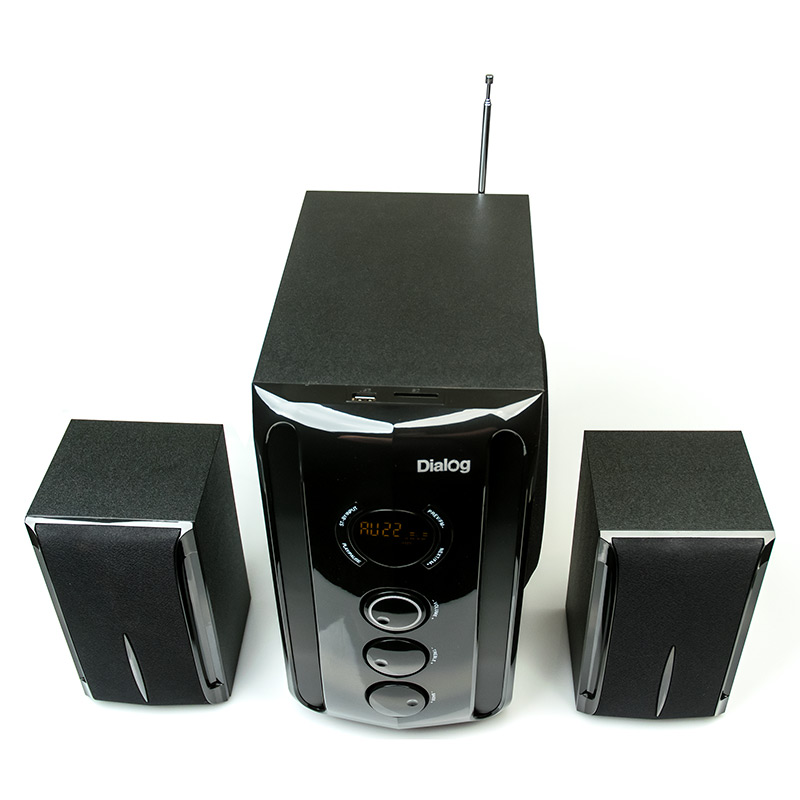

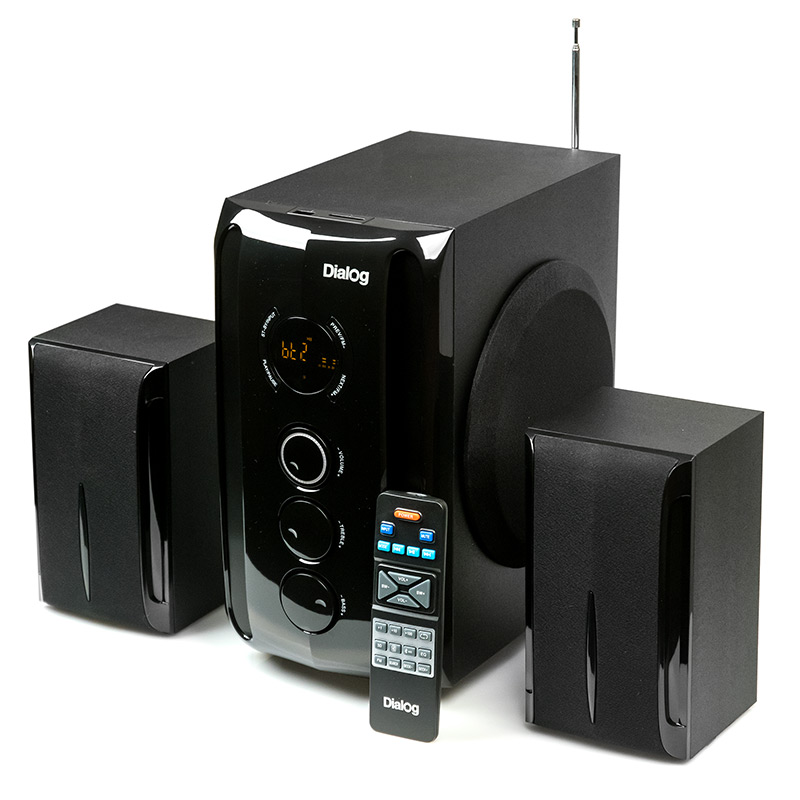

2.1 Speakers AP-209 main photo
Printer friendly page
Download photos
Add to compare
Product specifications
Model moved to archive on 30.08.2022
Power RMS, W60
Bluetooth supportYes
FM radioYes, with telescopic antenna
USB supportYes
SD card supportYes. SD, + miniSD & microSD (via adapter - sold separately)
ComponentsSubwoofer, 2 satellites
Harmonic distortionnot more than 0.3% at 1 W and a bandwidth of 1 kHz
Power supplyBuilt-in

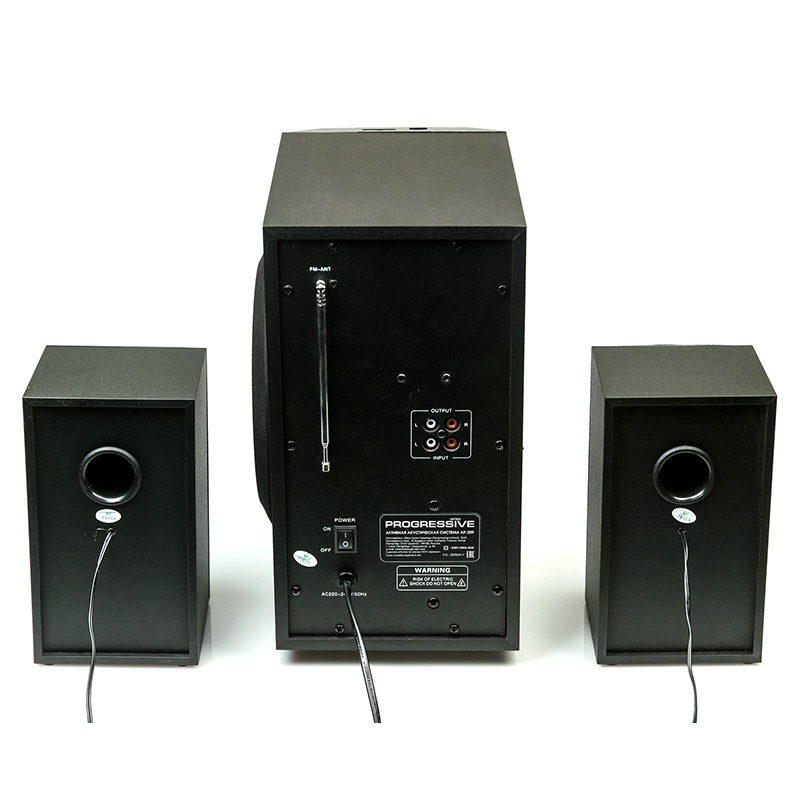

InputsStereo input (2RCA), USB port for flash drives; SD card slot
Controlssubwoofer: power (on rear side), volume knob with backlight, Treble knob, Bass knob, input source switching, pause / play, forward / backward (on the tracks or radio stations); Remote: detailed description - see user manual

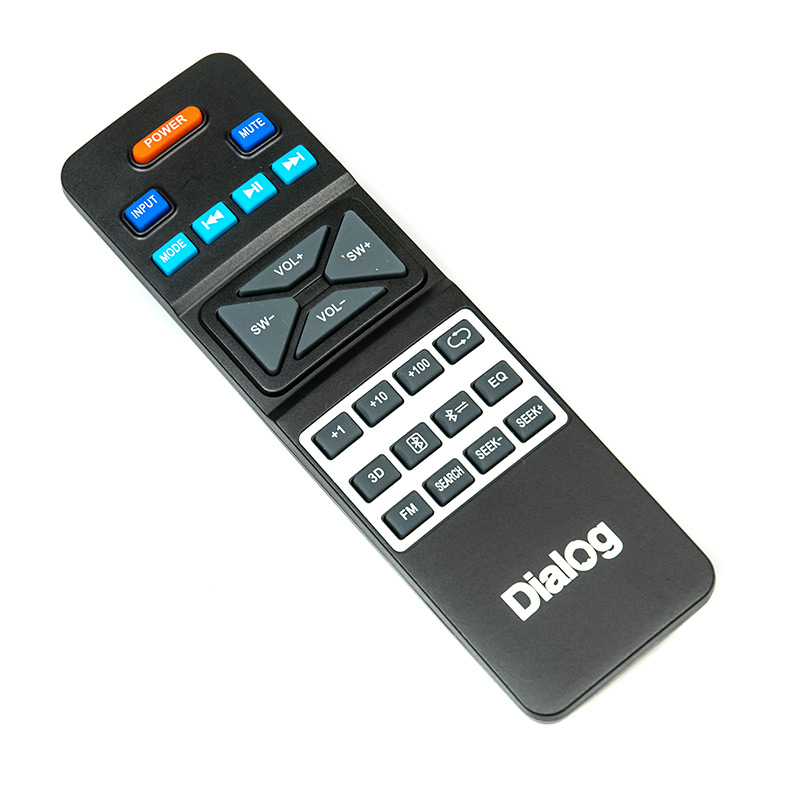

Remote controlIR remote
Indicatorsinformation display on the front panel of the subwoofer
Power cable length (m)1.5
Power (W)30
Impedance (Ohm)4
Frequency range(Hz-Hz)from 20 Hz
Run-out materialPaper
Phase inverterPipe on side panel, D=50mm, L=100mm
CaseMDF, 9mm
Overall dimensions (H*L*D, mm)310*275*170
Weight (kg)4.20

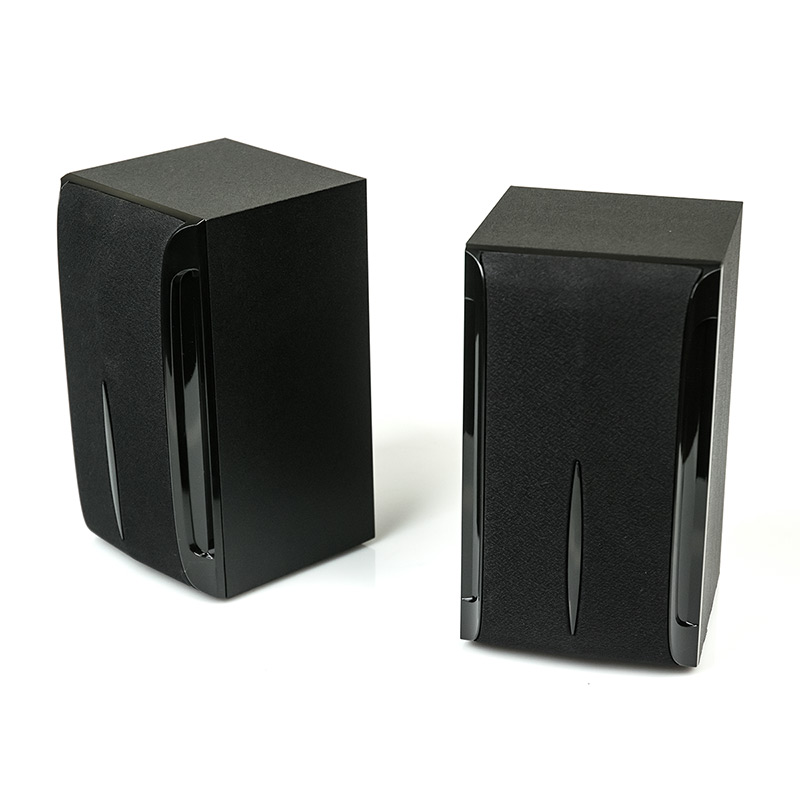

Power (W)15
Impedance (Ohm)4
Frequency range (Hz-kHz)up to 20 kHz
Run-out materialpaper
Phase inverterPipe on rear panel, D=30, L=40 mm
CaseMDF, 6 mm
Grillnot removable, black fabric
Overall dimensions (H*L*D, mm)200*120*114
Weight (kg)0.73

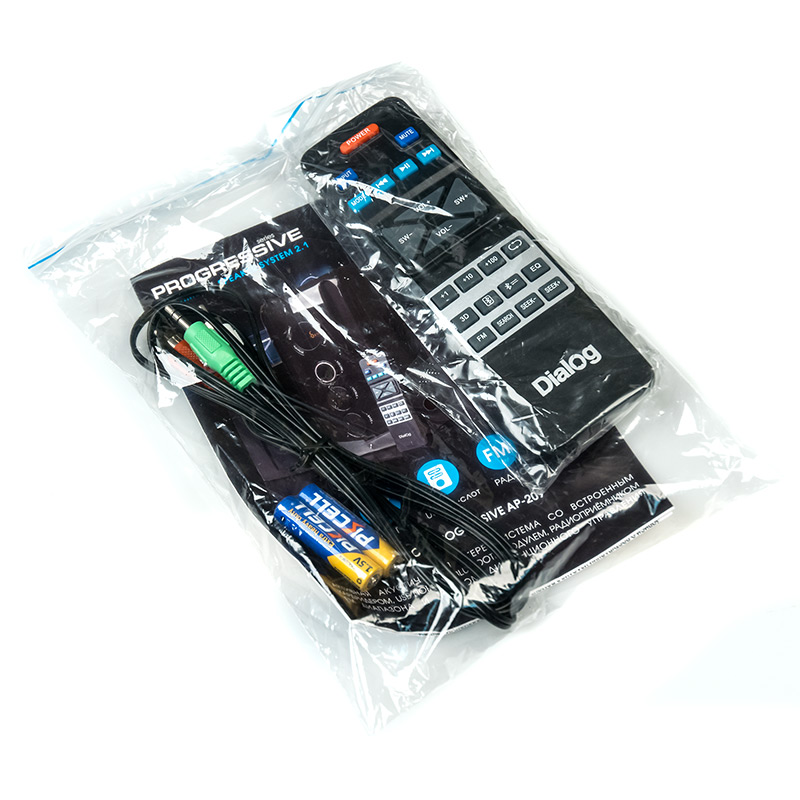

Supplied partssubwoofer, two satellites with cables, cable for connection to a signal source 2RCA-> 3.5 mm stereo jack, remote control, 2xAAA batteries (non-rechargeable), user manual/warranty card, packing
