Active 2.1 speakers Dialog Progressive AP-160

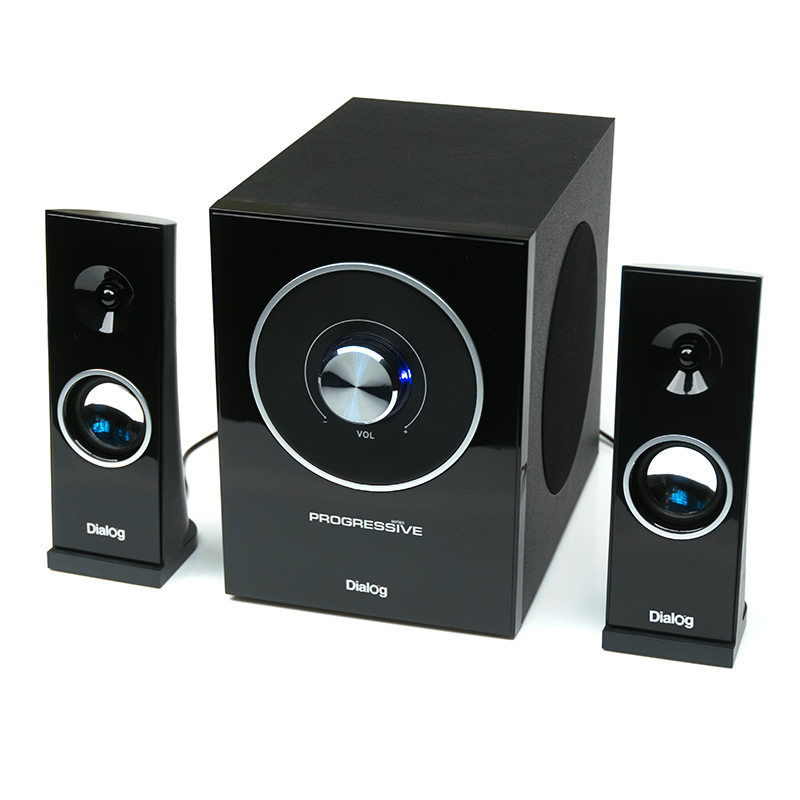

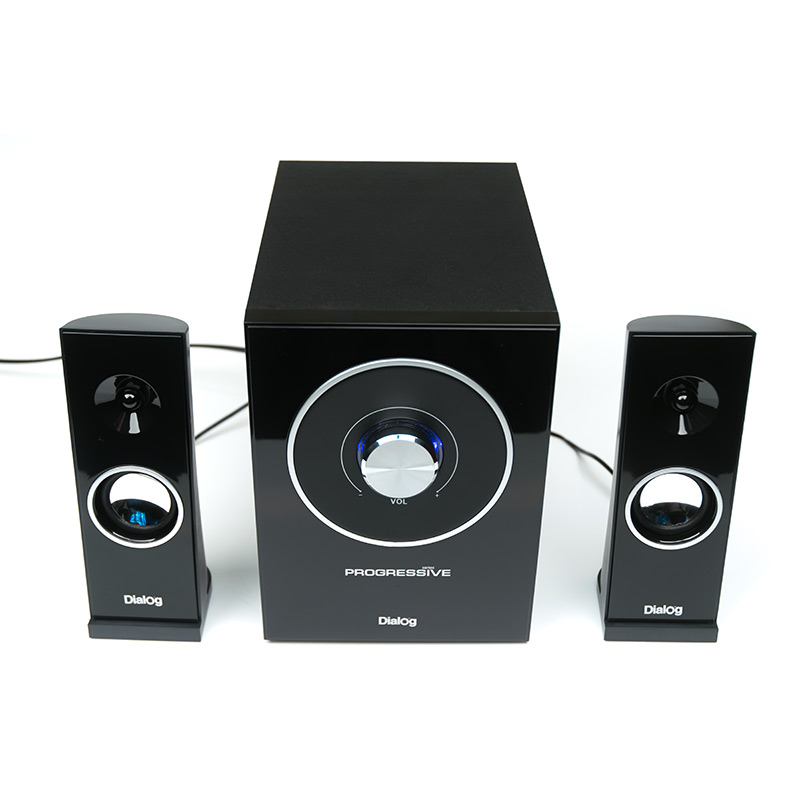

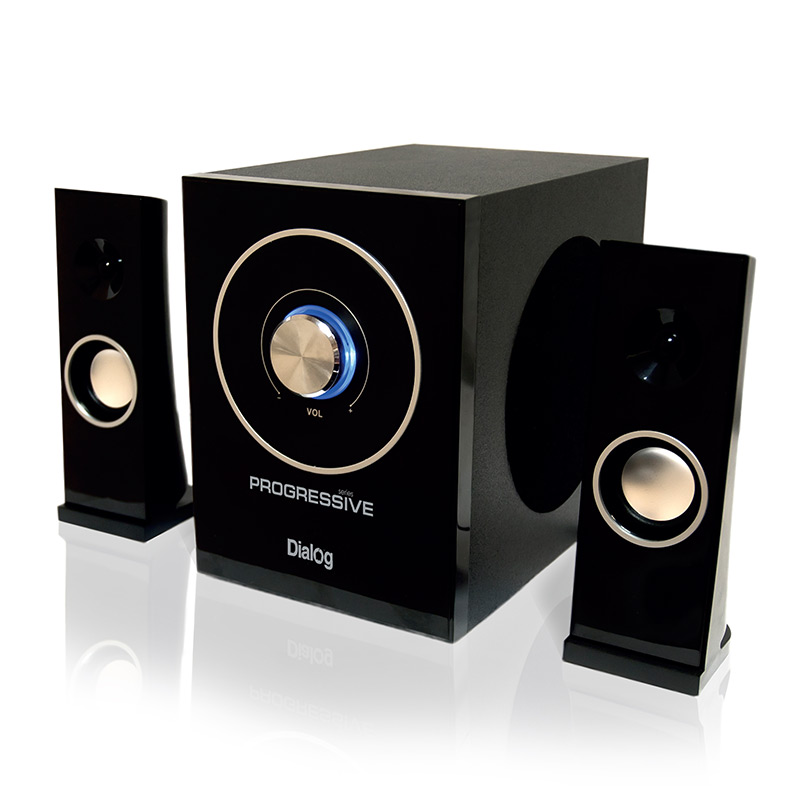

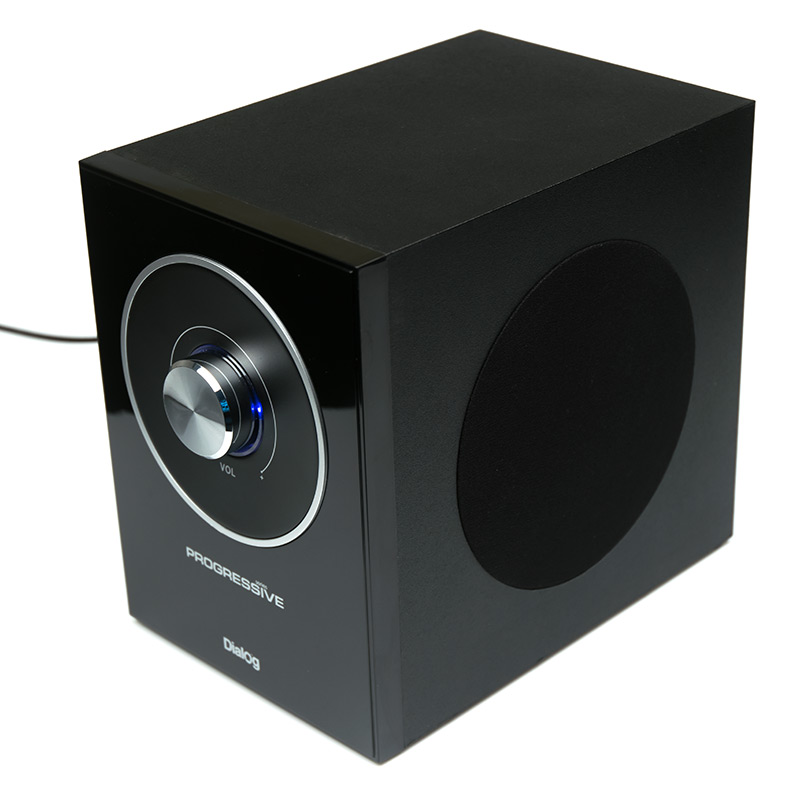

2.1 Speakers AP-160 main photo
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
AP-160 thumbnail
Printer friendly page
Download photos
Add to compare
Product specifications
Model moved to archive on 08.12.2016
ModelAP-160
Power RMS, W20
AmplifierBuilt-in
ComponentsSubwoofer, 2 satellites
Power supplyBuilt-in

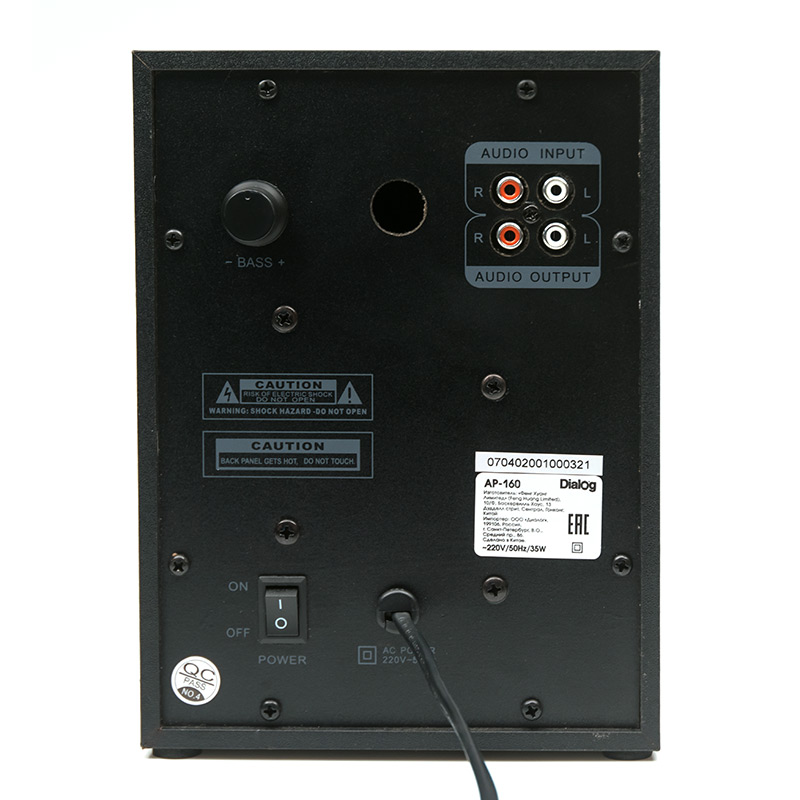

InputsStereo input (2RCA)
Controlssubwoofer: power, volume, bass
IndicatorsPower LED
Power cable length (m)1,5
Subwoofer
Loudspeaker(s)4″
Power (W)10
Impedance (Ohm)6
Frequency range(Hz-Hz)from 20 Hz
Run-out materialPaper
Phase inverterPipe on rear panel, D=16mm
Magnetic shieldingYes
CaseMDF, 6 mm
Grillnot removable, black textile
Overall dimensions (H*L*D, mm)235*160*220
Weight (kg)2,3

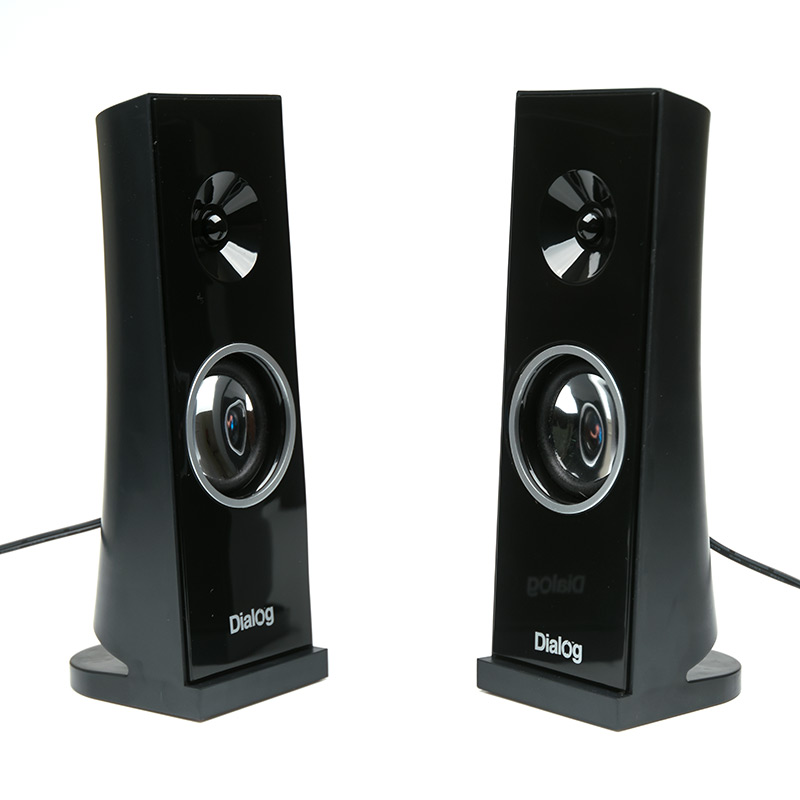

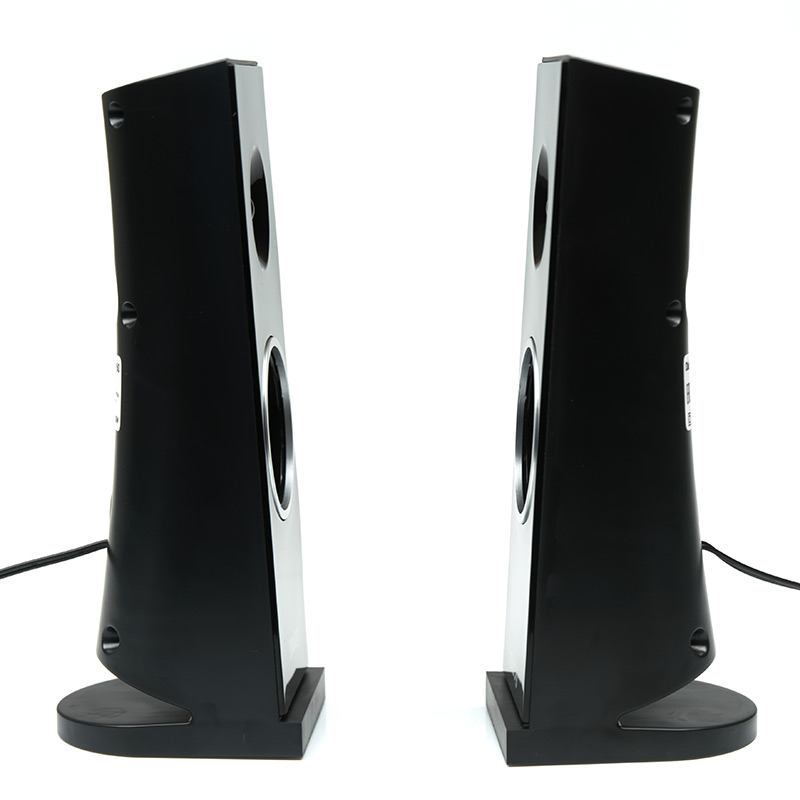

Satellites
Loudspeaker(s)2″
Power (W)5
Impedance (Ohm)4
Frequency range (Hz-kHz)up to 20 kHz
Run-out materialpaper
Phase inverteron rear panel
Magnetic shieldingYes
Caseplastic
Overall dimensions (H*L*D, mm)200*67*75
Weight (kg)0.23

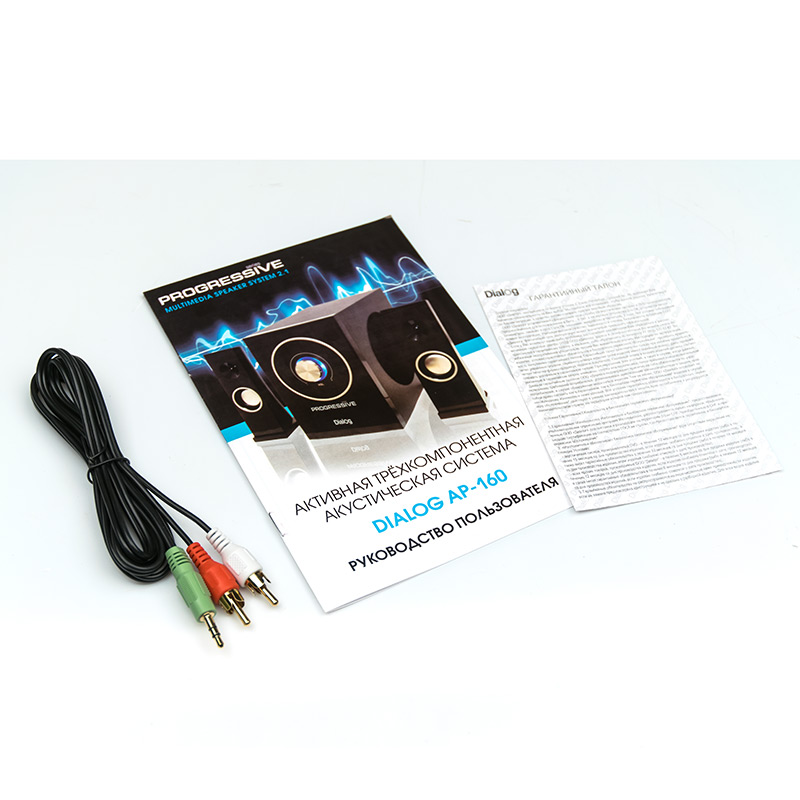

Supplied partssubwoofer, two satellites with cables, cable for connection to a signal source 2RCA-> 3.5 mm stereo jack, user manual, warranty card, packing
