Dialog production :: Dialog J-201A - Powered 3-component acoustic system

Powered 3-component acoustic system Dialog J-201A

Add to compare
print page

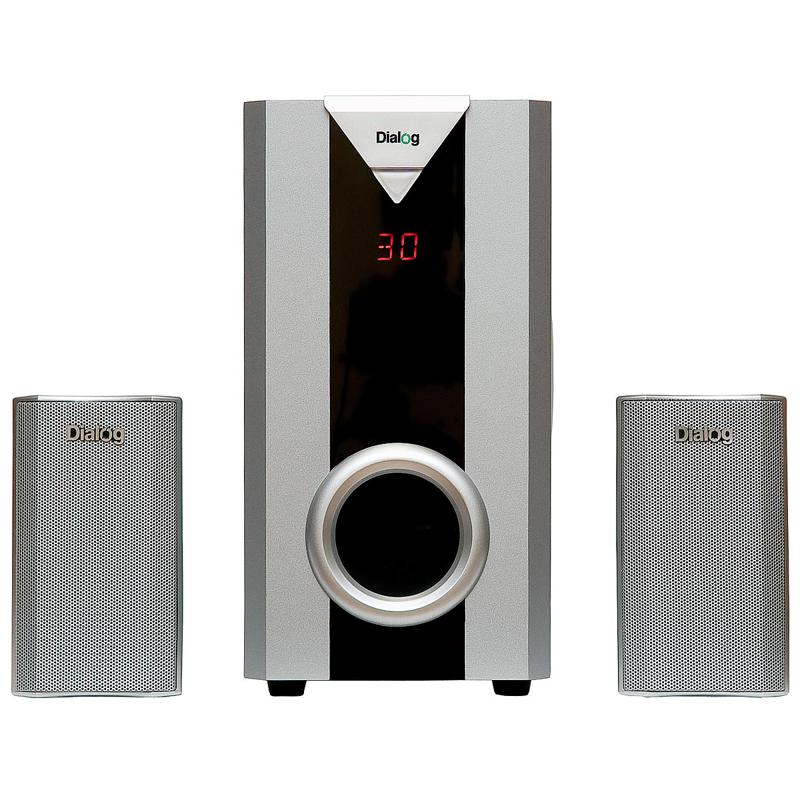

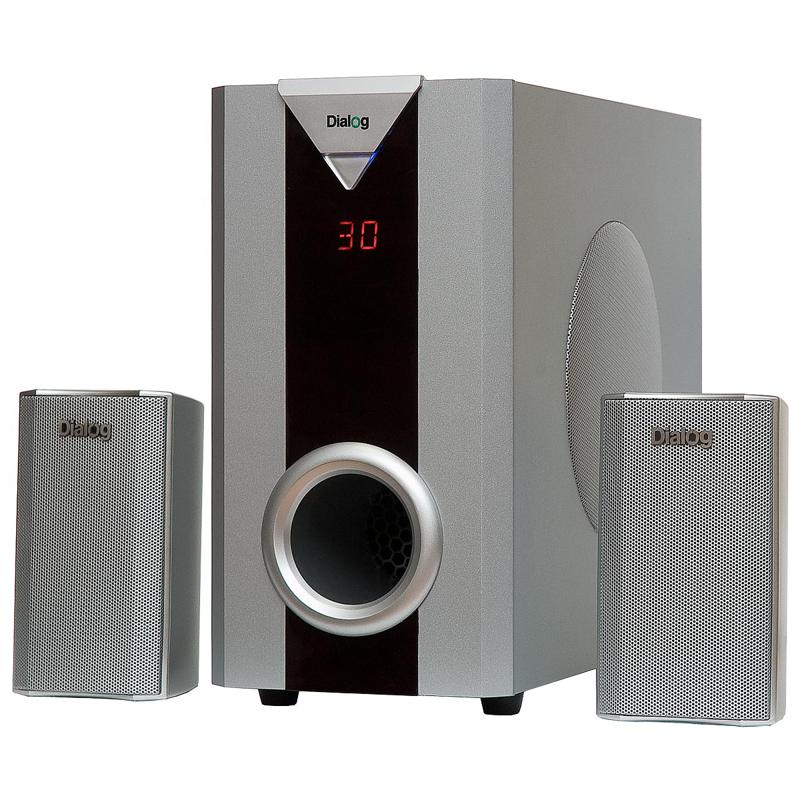

 J-201A main photo
J-201A thumbnail
J-201A thumbnail
J-201A thumbnail
J-201A thumbnail
J-201A thumbnail
J-201A thumbnail
Product specifications
ModelJ-201A
Power RMS, W64
AmplifierBuilt-in
ComponentsSubwoofer, 2 satellites
SNR>75
Division>45
Power supplyBuilt-in

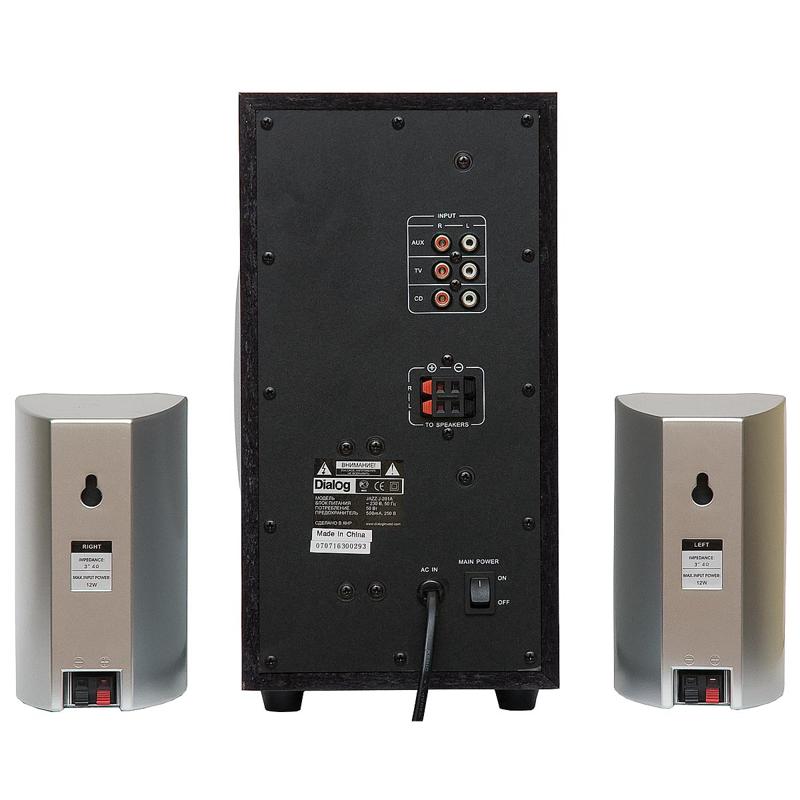

Inputs3 Stereo inputs (3x 2RCA)
ControlsPower

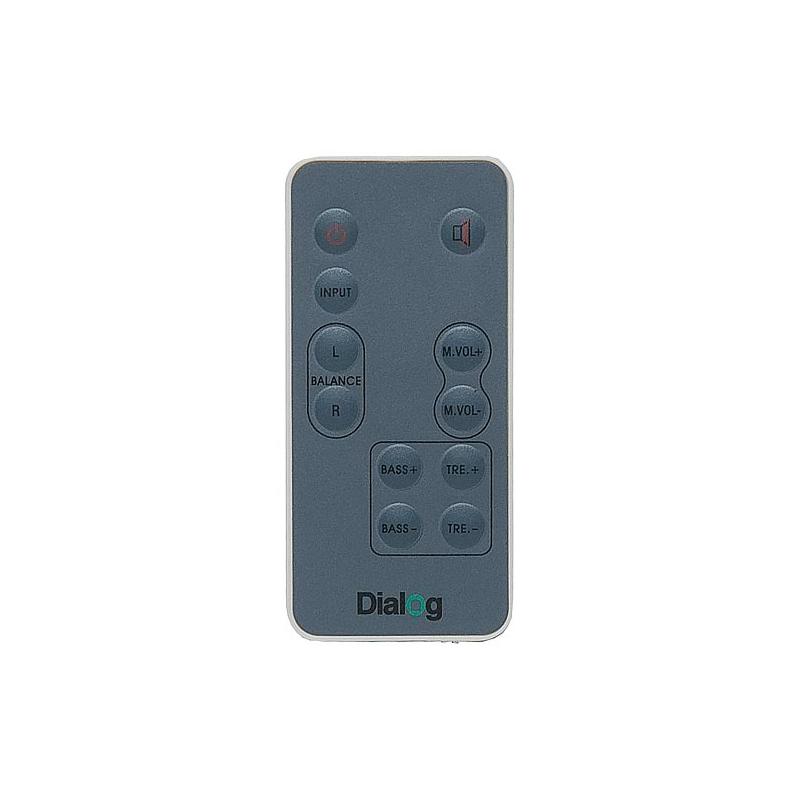

Remote controlFull-scale infrared
IndicatorsLuminescent display
Power cable length (m)1,5

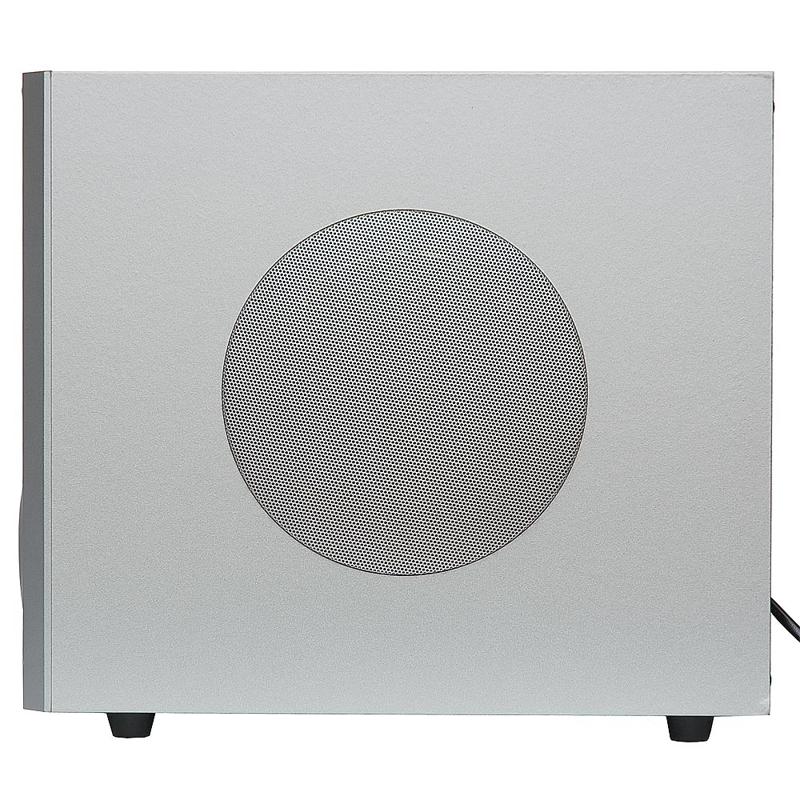

Subwoofer
Loudspeaker(s)5,25'' (on the right side)
Power (W)40
Impedance (Ohm)6
Frequency range(Hz-Hz)20-250
Run-out materialPaper
Phase inverterPipe on front panel, D=65, L=100 mm
Magnetic shieldingYes
CaseMDF, 8 mm
GrillSilver metal
Overall dimensions (H*L*D, mm)300*160*350
Satellites
Loudspeaker(s)3''
Power (W)12
Impedance (Ohm)4
Frequency range (Hz-kHz)200-20
Run-out materialpaper
Magnetic shieldingYes
Caseplastic
Grillsilver metallic
Overall dimensions (H*L*D, mm)158*90*100
Wall mountingYes (ears)
Supplied partsSubwoofer, 2 satellites, infrared remote control, signal source connection cable 3.5 mm stereo minijack -> 2RCA, warranty card, user manual, packaging
