Powered 5.1 acoustic system for the home theatres Dialog Jazz J-105CT

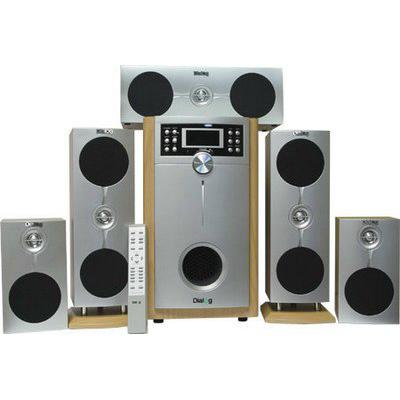

J-105CT main photo
J-105CT thumbnail
J-105CT thumbnail
J-105CT thumbnail
J-105CT thumbnail
J-105CT thumbnail
J-105CT thumbnail
J-105CT thumbnail
Printer friendly page
Add to compare
Product specifications
ModelDIALOG J-105CT
Power RMS, W235
5.1 ModeYes
ComponentsSubwoofer, 2 front satellites, 2 rear satellites, central satellite
AmplifierBuilt-in
Signal/noise ratio (dB)>75
Separation (dB)>45
Power supplyBuilt-in

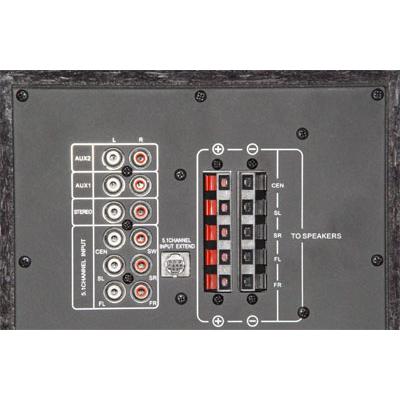

Inputs5.1 Input (DIN9),5.1 Input (6RCA), 3x stereo inputs (2RCA)

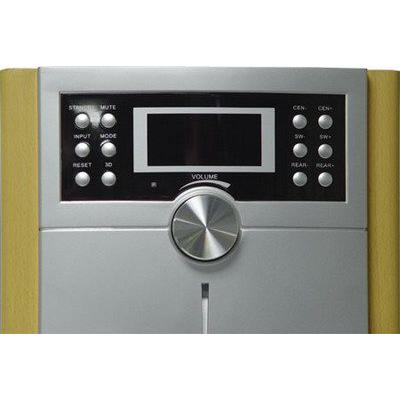

ControlsPower, master volume, rear satellites volume, central satellite volume, subwoofer volume, signal source selector, playback mode selector, reset , 3D on/off, mute

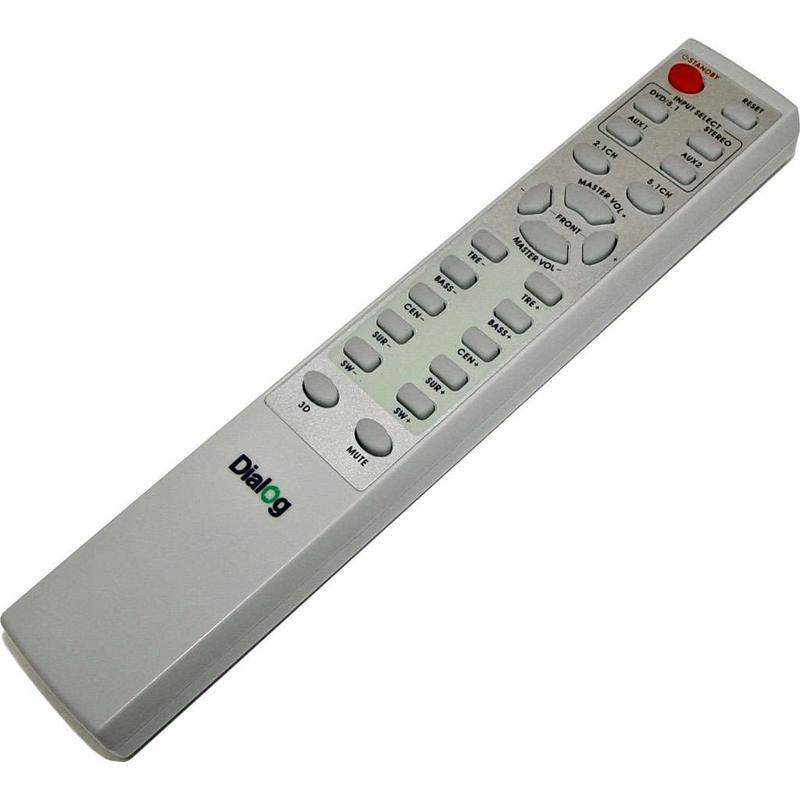

Remote controllerFull-scale infrared
IndicationPower LED, luminescent displpay
Power cable length (m)1.5

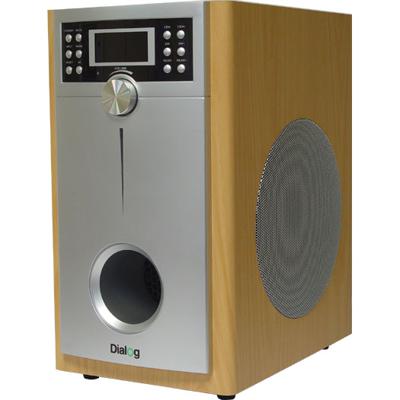

Subwoofer
Loudspeaker(s)6.5″ (on lateral side)
Power (W)60
Impedance (Ohm)6
Frequency response (Hz-Hz)20-250
Loudspeaker(s) materialTextured paper
Phase inverterPipe on front panel, D=75 mm, L=80 mm
Magnetic shieldYes
CabinetMDF, 12 mm
GrillSilver metallic
Dimensions (H*W*D, mm)395*220*350
Front satellites
Loudspeaker(s)HF - 1″, LF - 2*3.5″
Power (W)HF - 3, LF - 2*20
Impedance (Ohm)HF - 4, LF - 8
Frequency range (Hz-kHz)250-20
Loudspeaker(s) materialHF - foil, LF - paper
Phase inverterPipe on rear side, D=25, L=50
Magnetic shieldingYes
CaseMDF, 4 mm
GrillBlack fabric
Overall dimensions (H*L*D, mm)327*113*130 (without podiums)
PodiumsYes
Rear satellites
Loudspeaker(s)HF - 1″, LF - 3.5″
Power (W)HF - 3, LF - 20
Impedance (Ohm)HF - 4, LF - 8
Frequency range (Hz-kHz)250-20
Loudspeaker(s) materialHF - foil, LF - paper
Phase inverterPipe on rear side, D=25, L=50
Magnetic shieldingYes
CaseMDF, 8 mm
GrillBlack fabric
Overall dimensions (H*L*D, mm)200*113*130
Wall mountingYes (ears)
Central satellites
Loudspeaker(s)HF - 1″, LF - 2*3.5″
Power (W)HF - 3, LF - 2*20
Impedance (Ohm)HF - 4, LF - 4
Frequency range (Hz-kHz)250-20
Loudspeaker(s) materialHF - foil, LF - paper
Phase inverterPipe on rear side, D=25, L=50
Magnetic shieldingYes
CaseMDF, 8 mm
GrillBlack fabric
Overall dimensions (H*L*D, mm)113*327*130
Retail packing
